Description
xSPECIFICATIONS
Battery Included: No
Brand Name: diymore
Certification: CE
Hign-concerned Chemical: None
Model Number: Uninterruptible Power Supply
Origin: Mainland China
Output Voltage: 12V 3A
Protection: Overvoltage
Type: On-line
Weight: Automatic Switching
is_customized: Yes

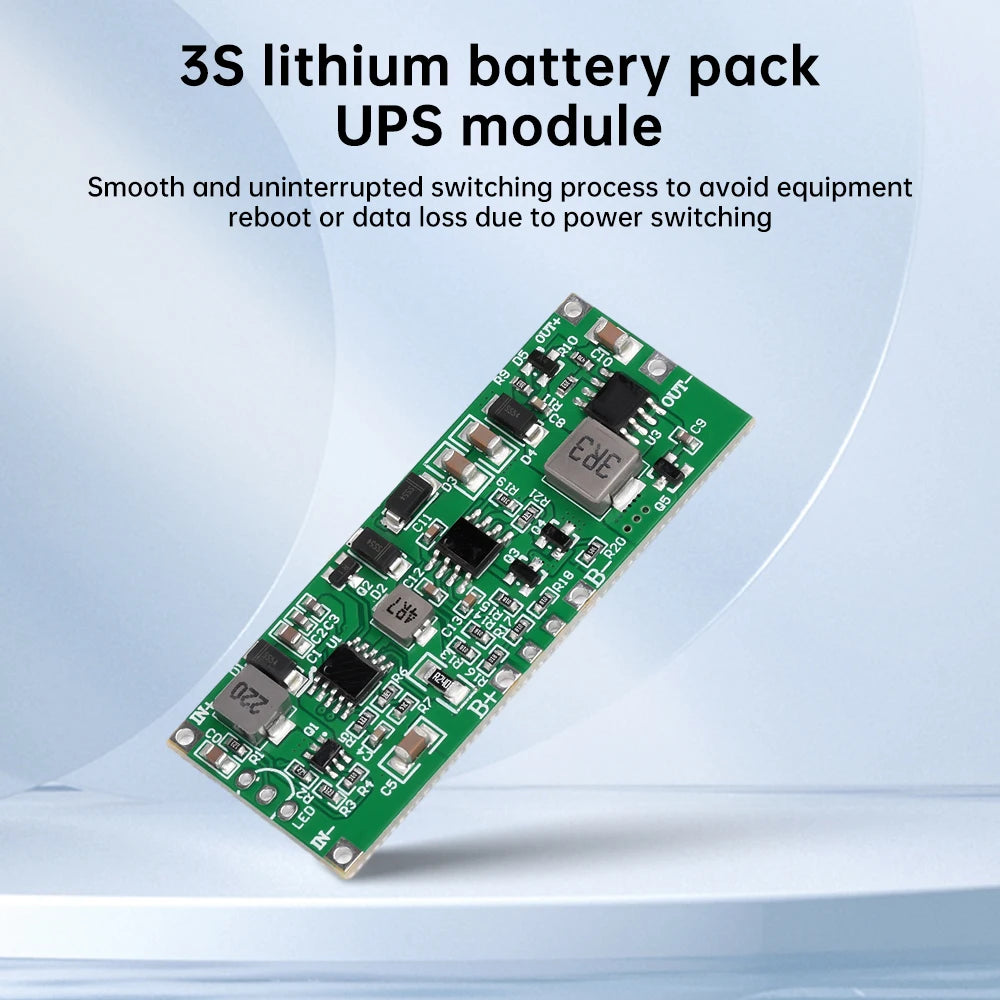

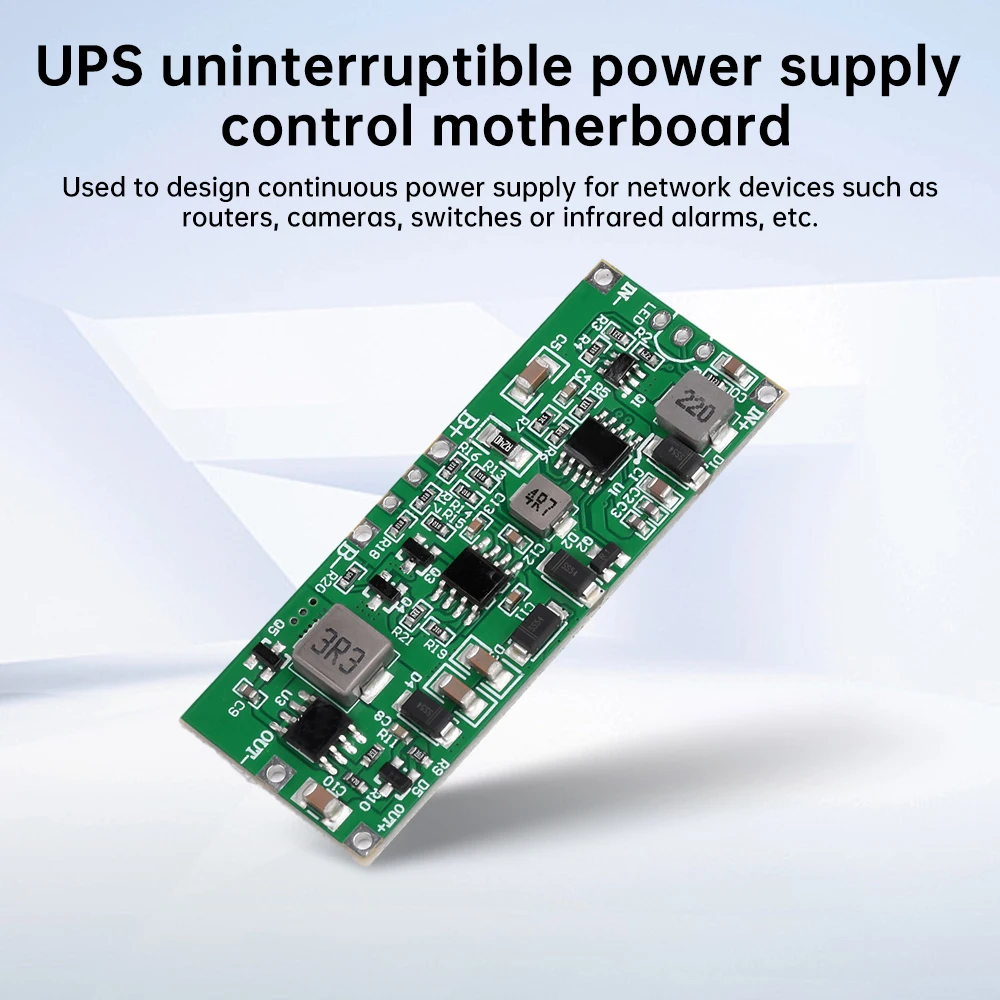

12V 3A High Power Uninterruptible Power Supply Board 3S Lithium Battery Pack UPS Module Charging Discharging Automatic Switching

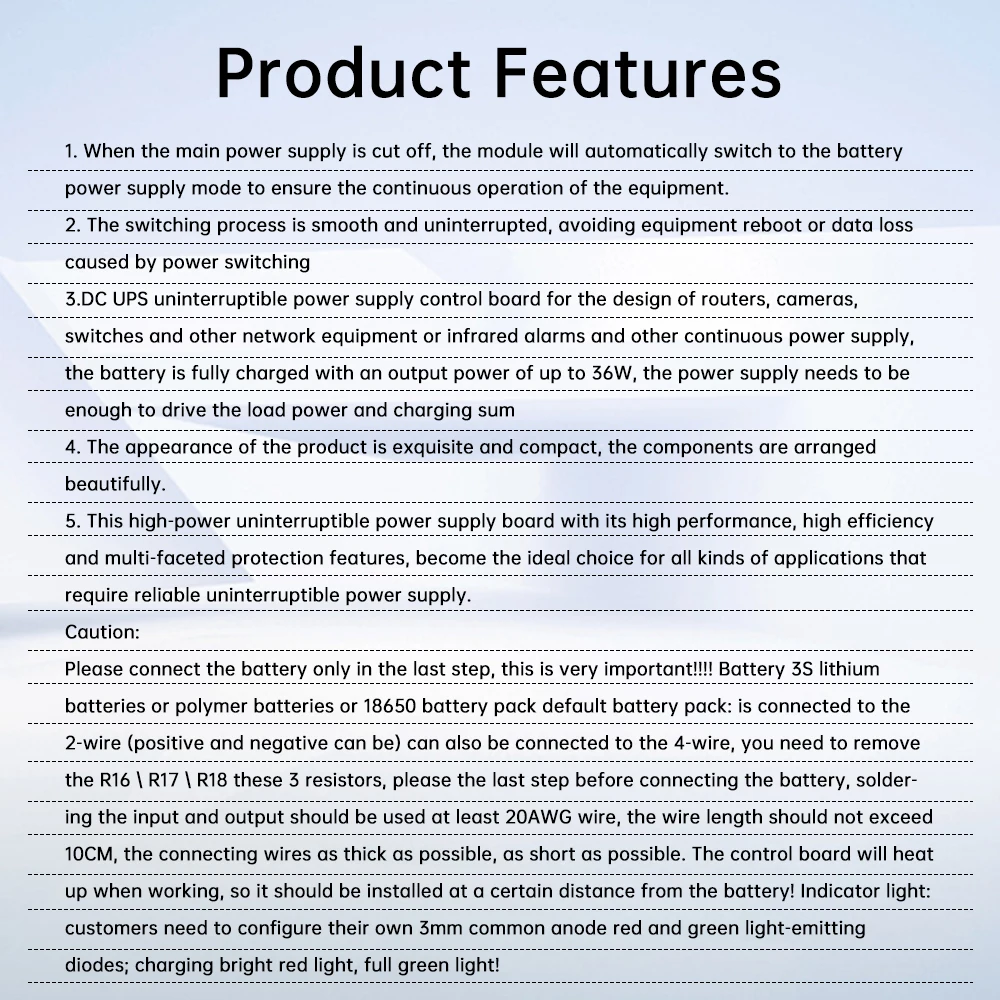

Features:

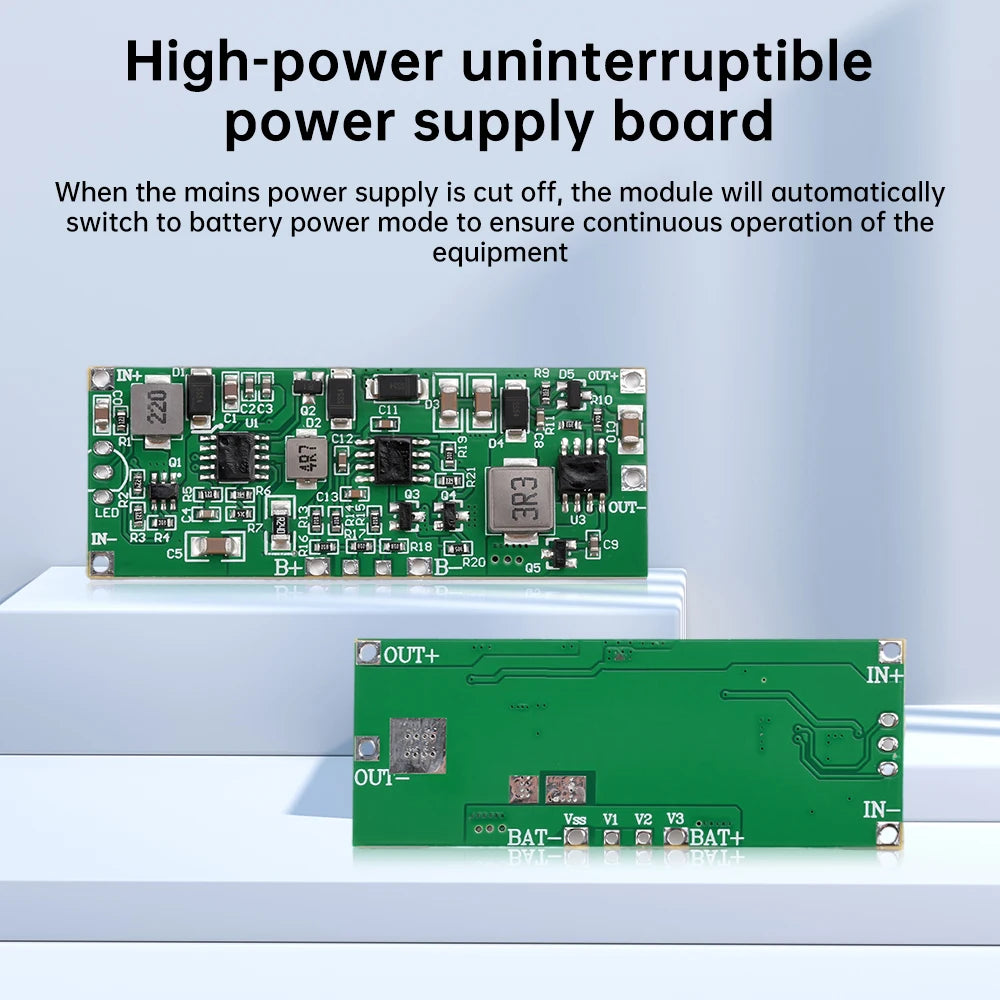

1. When the main power supply is disconnected, the module will automatically switch to the battery power mode to ensure that the equipment continues to run
2. The switching process is smooth and uninterrupted, avoiding equipment restart or data loss due to power switching.

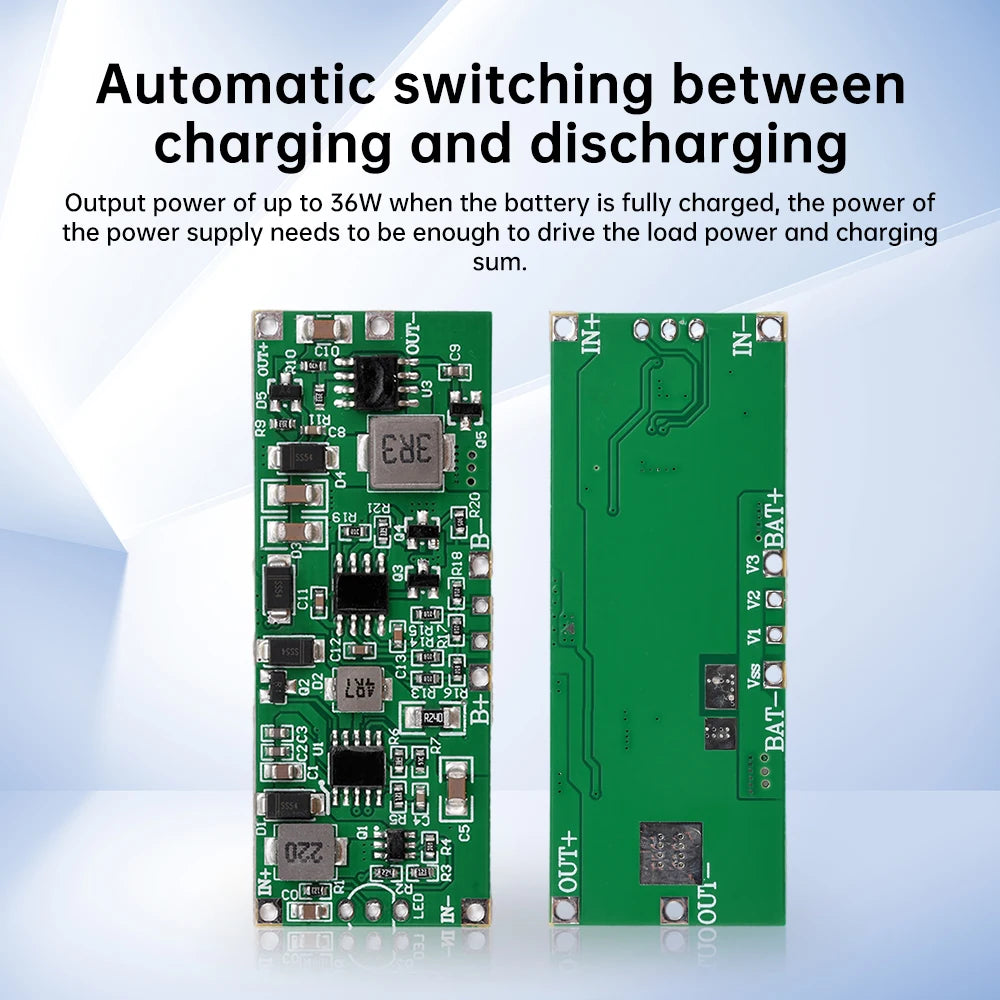

3.DC UPS uninterruptible power supply control board for the design of routers, cameras, switches and other network equipment or infrared alarms and other continuous power supply, the battery is fully charged with an output power of up to 36W, the power supply needs to be enough to drive the load power and charging sum
4. The appearance of the product is exquisite and compact, and the components are arranged in a beautiful way.

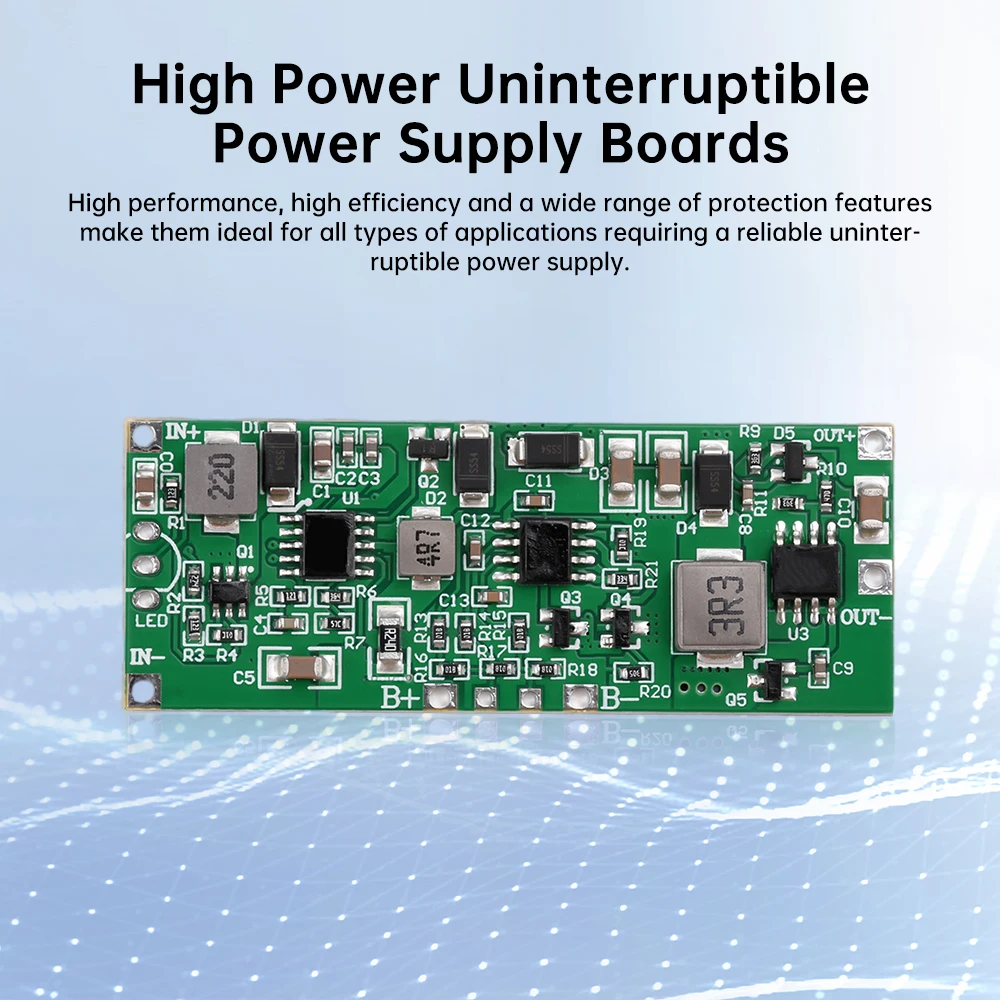

5. This high-power uninterruptible power supply board with its high performance, high efficiency and multi-faceted protection features, become the ideal choice for all kinds of applications that require reliable uninterruptible power supply.
Parameter:
Input voltage: DC12V
Output voltage: DC12V (between 11V and 13V)
Output power: 36W (MAX)
Battery charging current: 0.5A (MAX)
Specific input current depends on the load, the load operating current plus charging current (0.5A) is the current of the input power supply.
Self-contained battery charging and discharging protection function
Power battery power supply automatic switching
Caution:

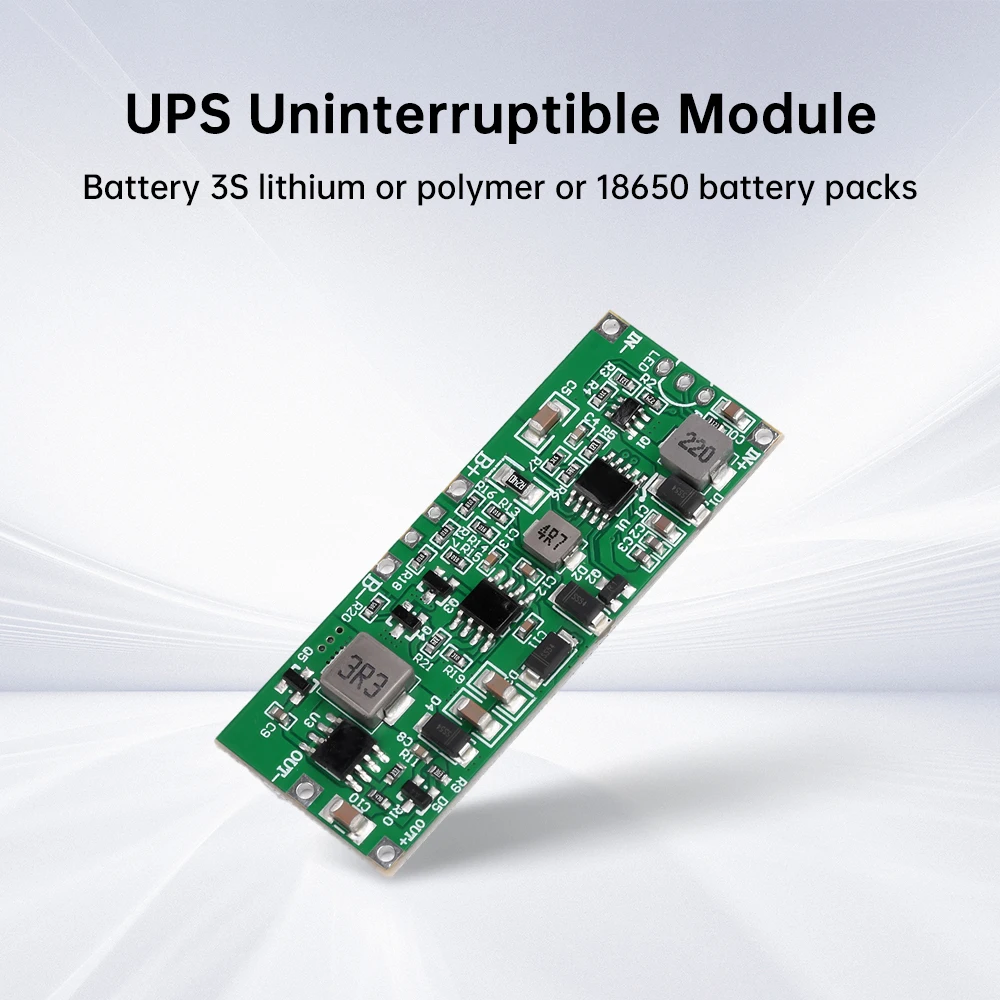

Please connect the battery only in the last step, this is very important!!!! Battery 3S lithium batteries or polymer batteries or 18650 battery packs

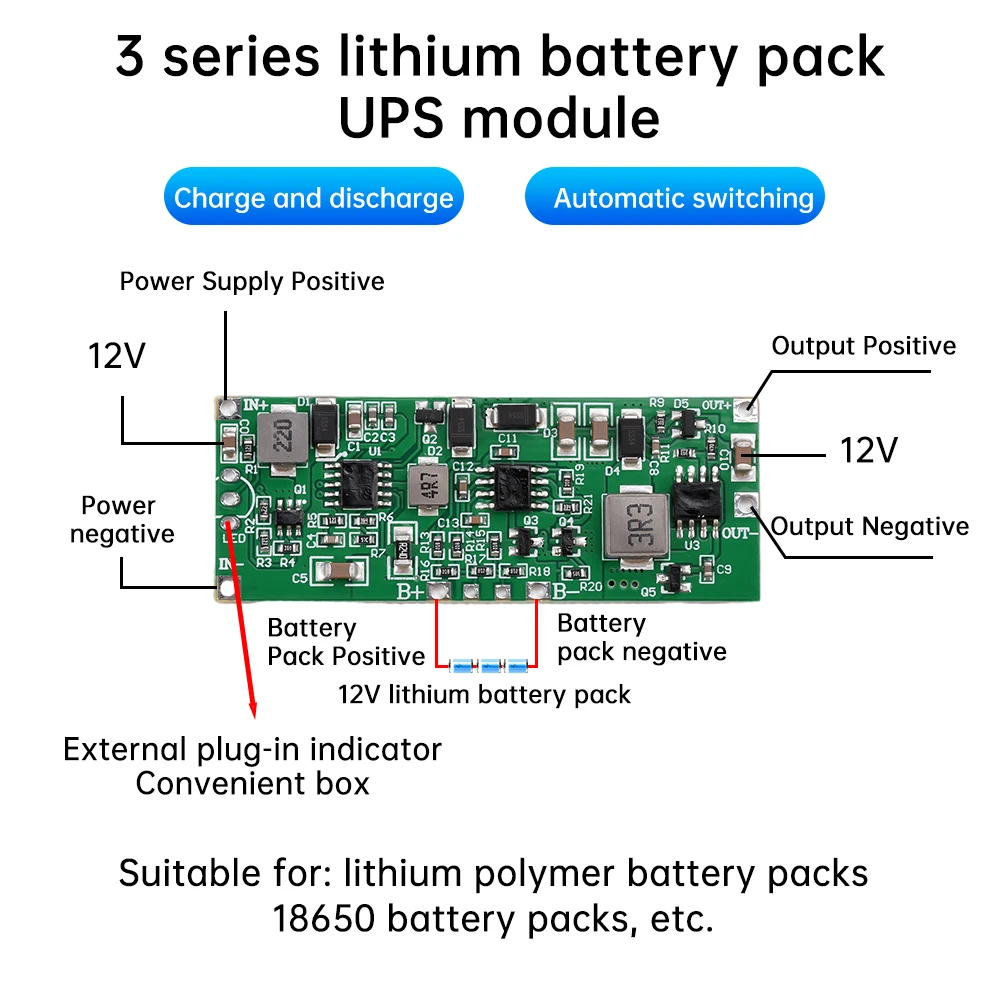

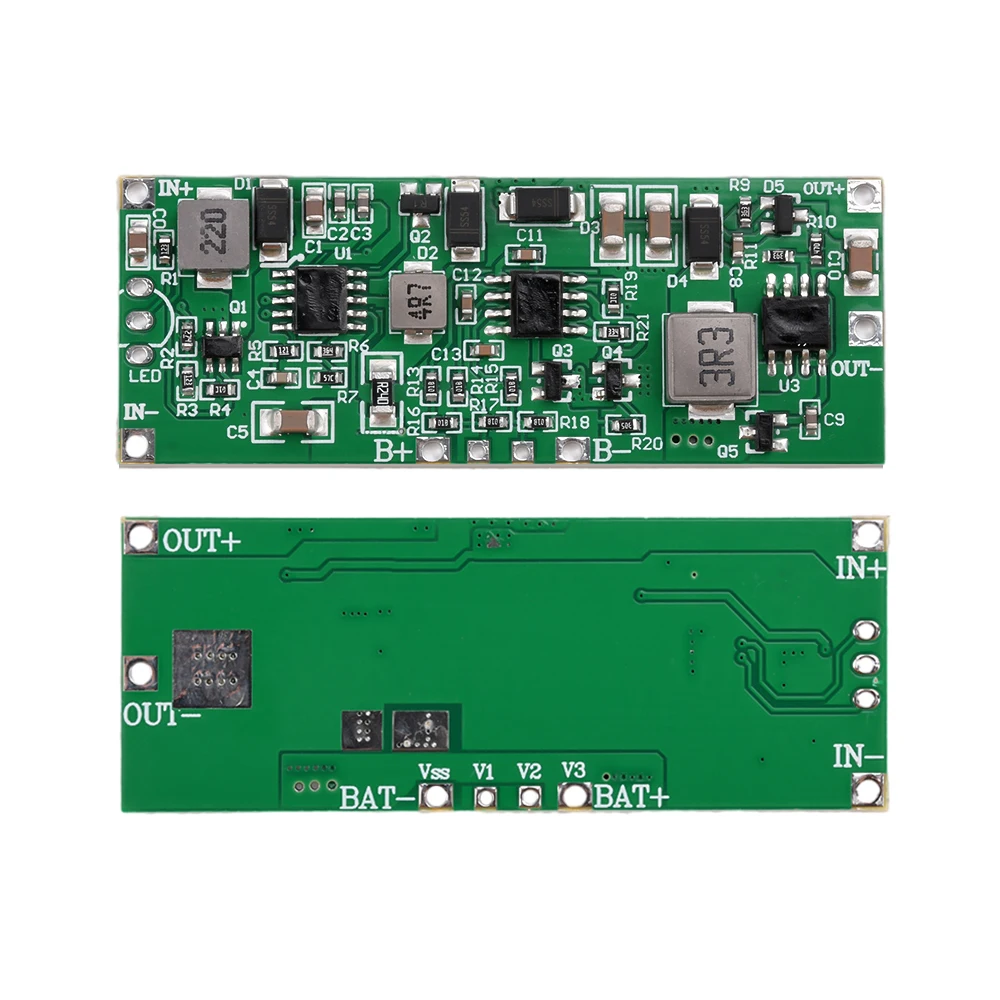

Default battery pack: is connected to the 2-wire (positive and negative can be) can also be connected to the 4-wire, you need to remove the R16 \ R17 \ R18 these 3 resistors!
Please connect the battery in the last step, welding input and output at least 20AWG wire, wire length should not exceed 10CM, connecting wire as thick as possible, as short as possible.
The control board will be hot when working, so it should be installed at a certain distance from the battery!
Indicator light: customers need to configure their own 3mm common anode red and green light-emitting diodes; charging bright red light on, full green light on!
Package include:
ups uninterruptible module * 1
