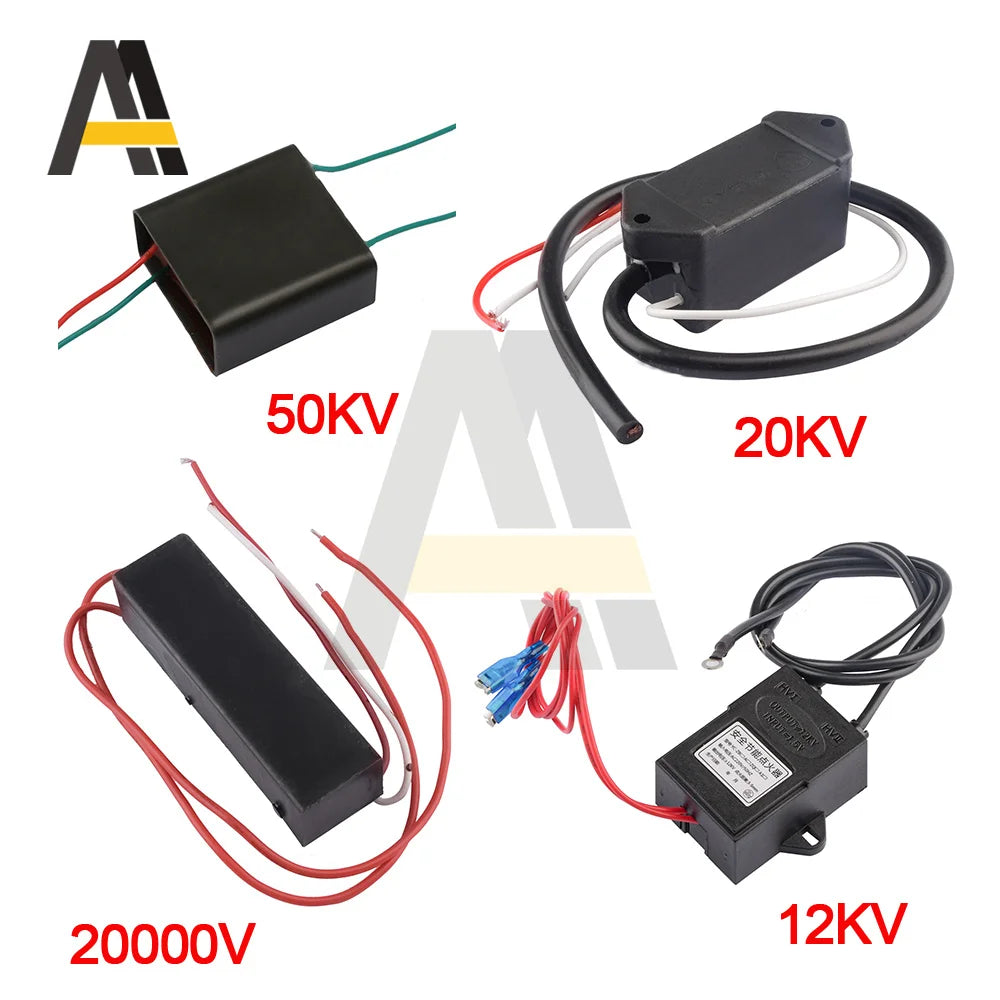

DC 3.6V-6V To 12KV 20KV 50KV Boost Step Up Module High Voltage Generator Pulse Arc Generator Ignition Coil Module

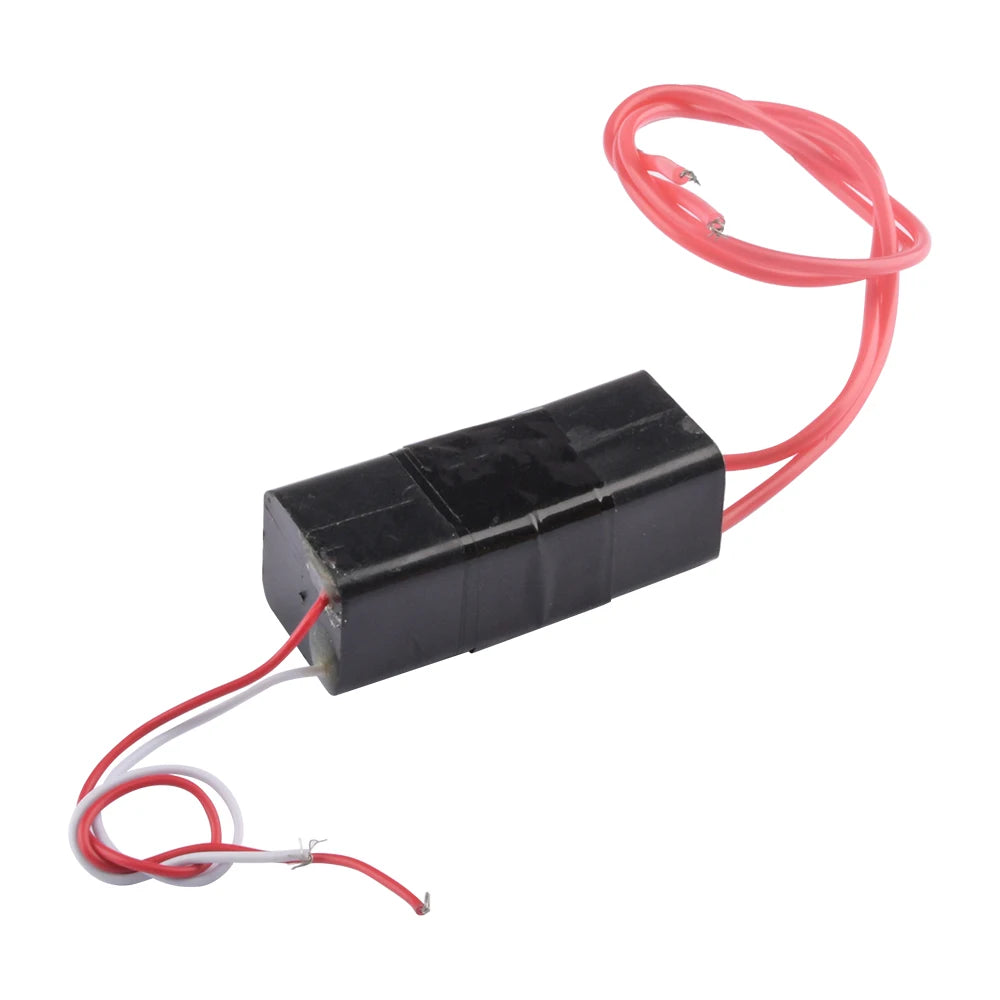

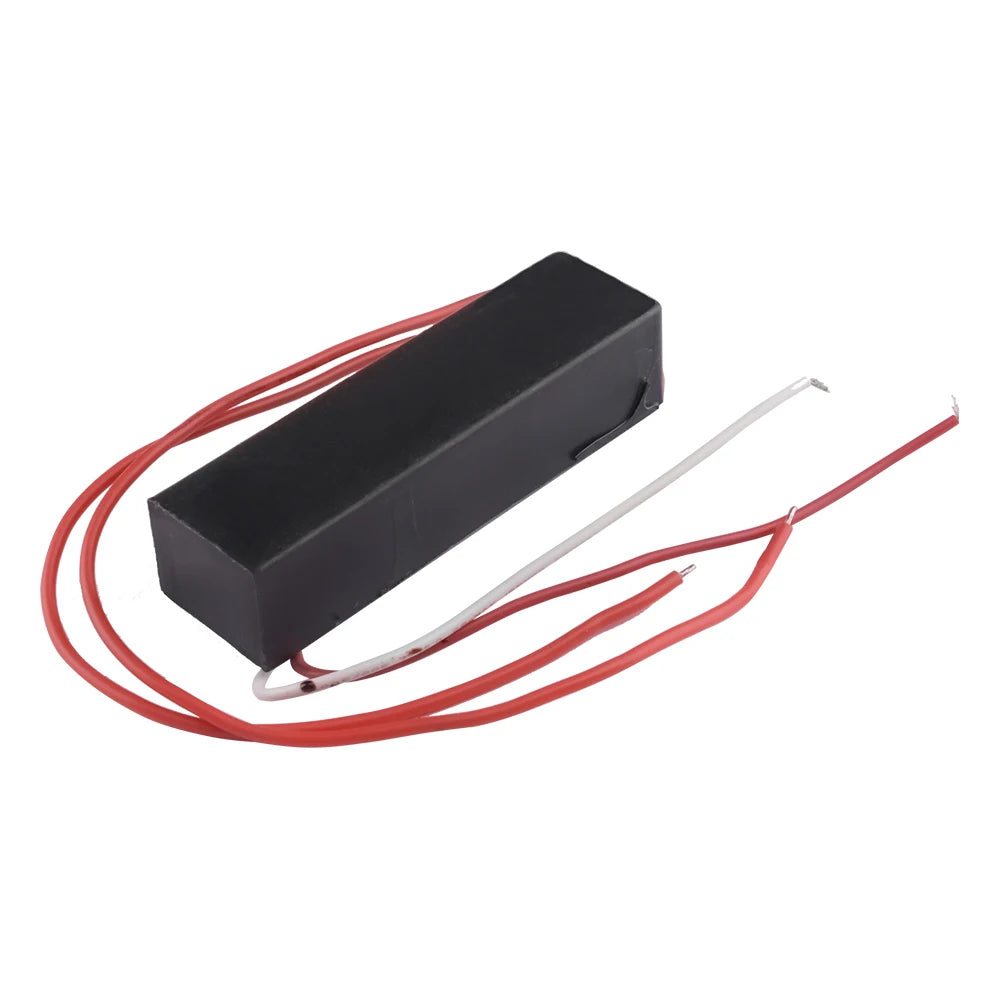

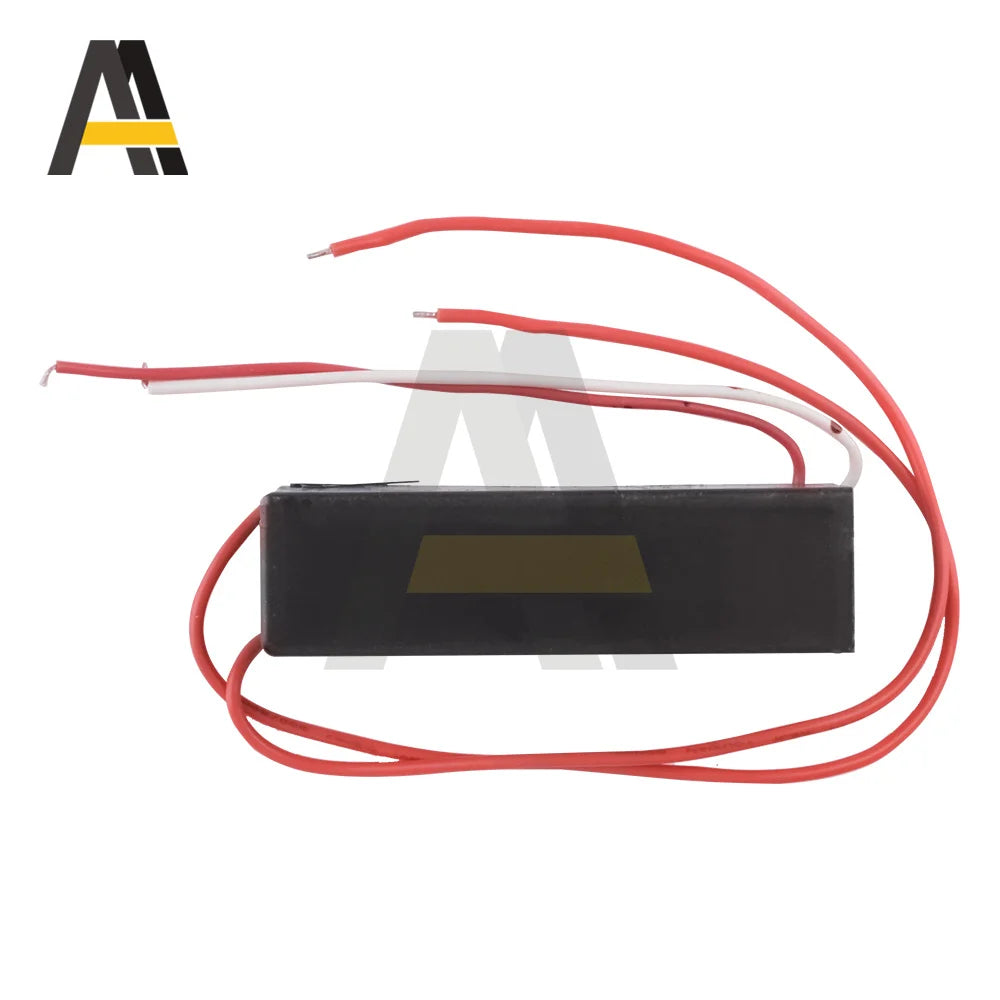

20000V

Specification:

Working current: 10mA

Input voltage: DC3.7-7V

Output voltage: 20000V

Size: 79.5mmx22mmx20mm

Discharge distance: within 14mm

Module input: red positive white negative,

When using, adjust the output spacing first and then turn on the power. Intermittent work is recommended for short periods of time.

Shipping list:

1*High Voltage Generator

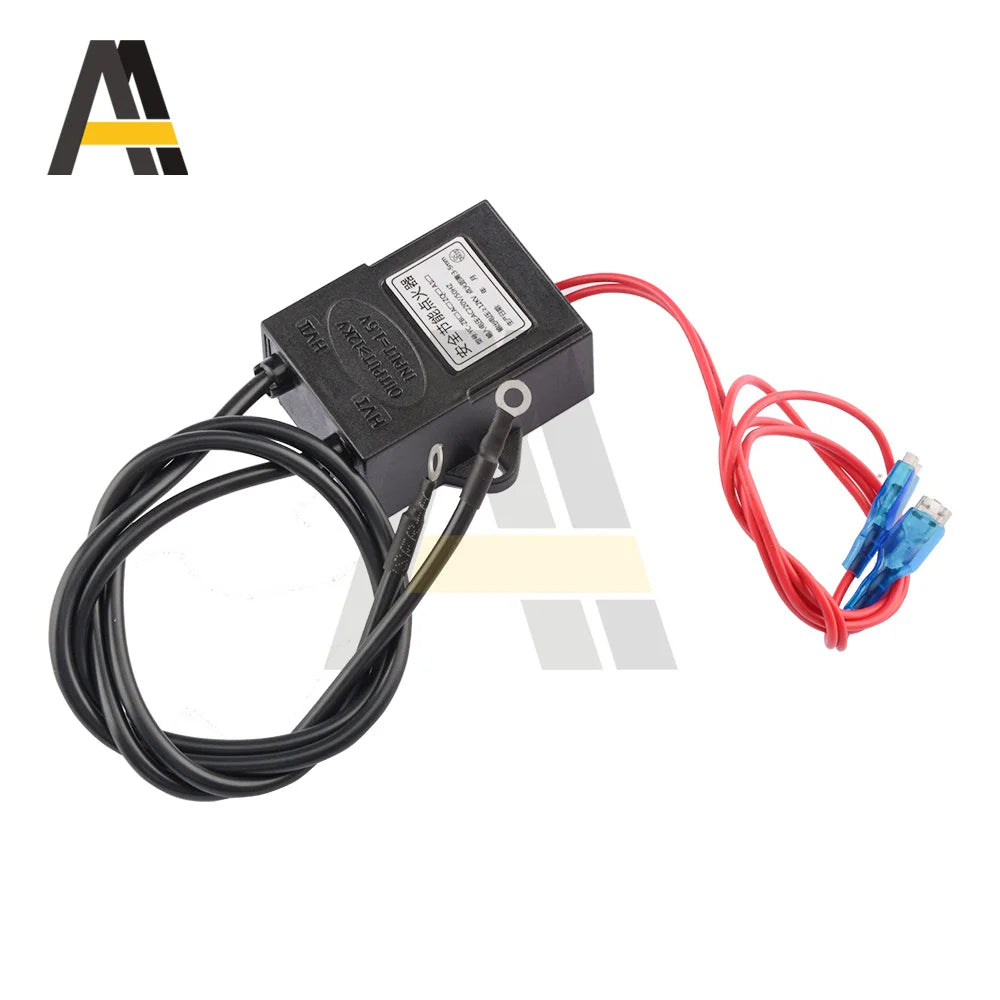

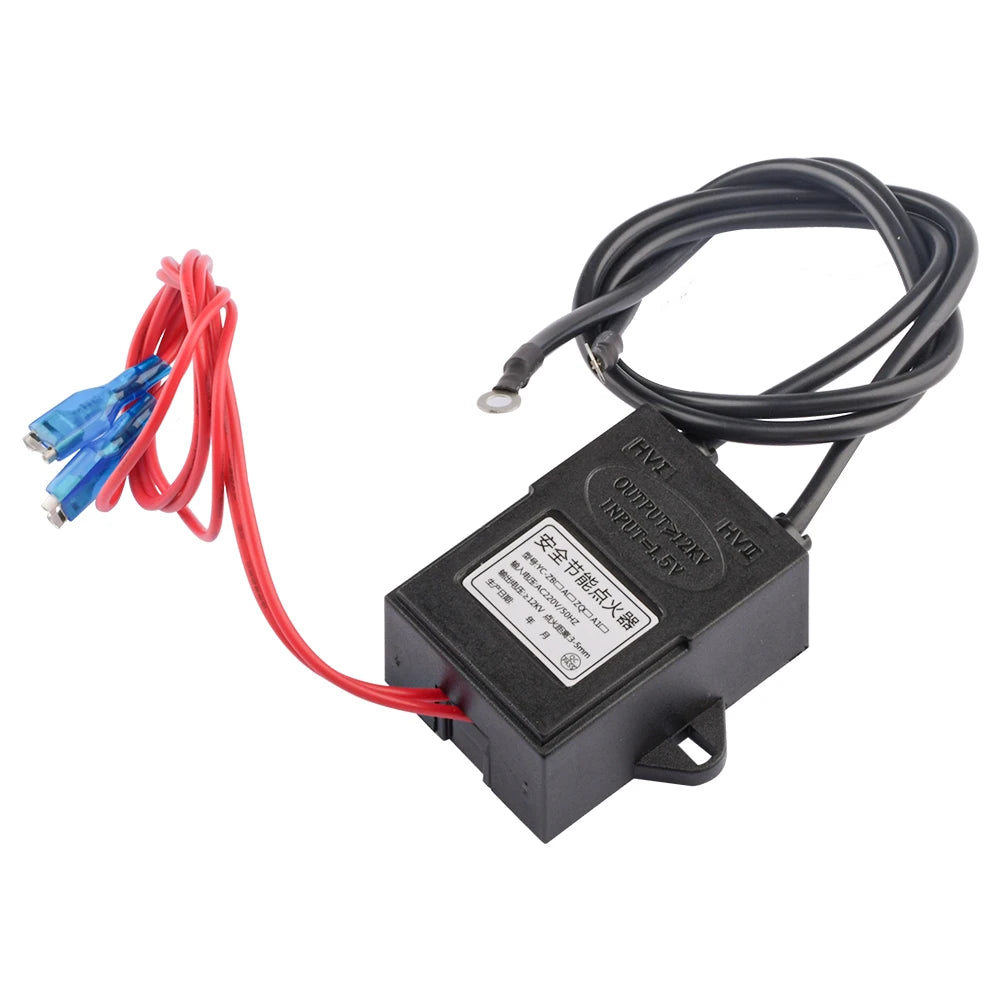

12KV AC220V

Features:

1. Can work continuously for 24 hours.

2. Suitable for hotel automatic fuel stove, ordinary fuel stove, etc.

Specification:

Type: 220V continuous igniter

Input current: 1A-2A

Input voltage: AC220V

Output current: 1A-2A

High voltage type: AC type

Input cable length: about 19 cm

Output cable length: about 30 cm

Ignition needs to be matched with ignition needle

High voltage bipolar discharge distance: 0.5cm-1.5cm

Output voltage: about 15KV (please pay attention to safety when using)

Physical volume: length 64mmX width 64mmX thickness 28.5mm
(measure the most prominent point)

(This size is measured by a precise vernier caliper, which may deviate slightly from ordinary measurement)

About input power: NiCd/NiMH battery pack, 220V power supply, etc. (220V power supply can achieve the best effect)

Package list:

1*High Voltage Generator

20KV DC6-12V

Specification:

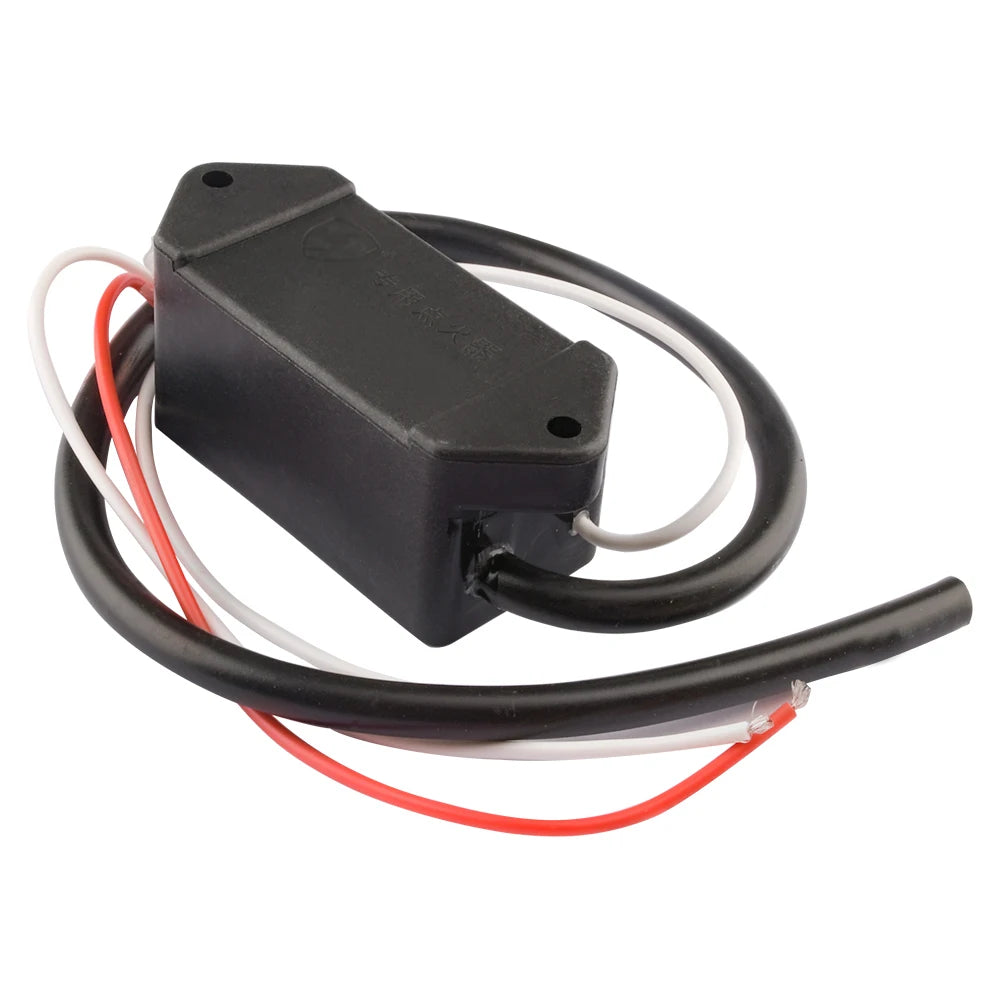

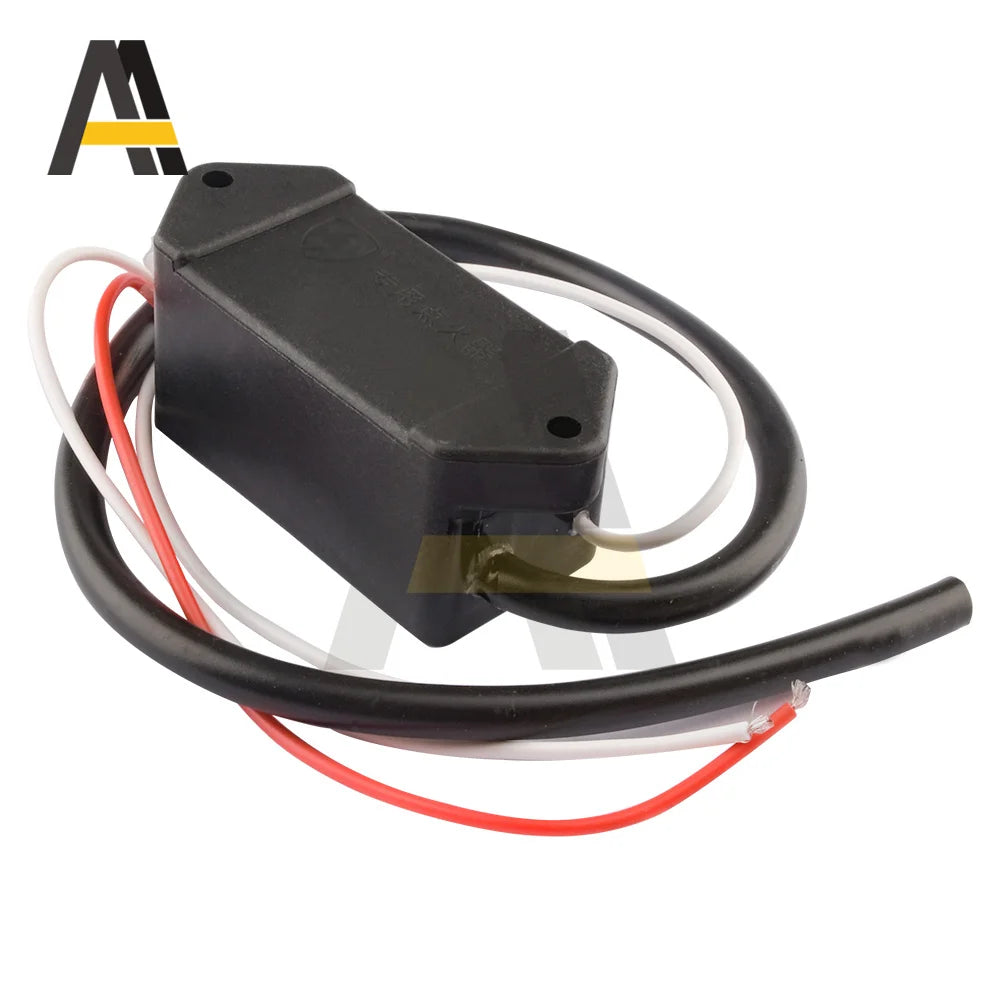

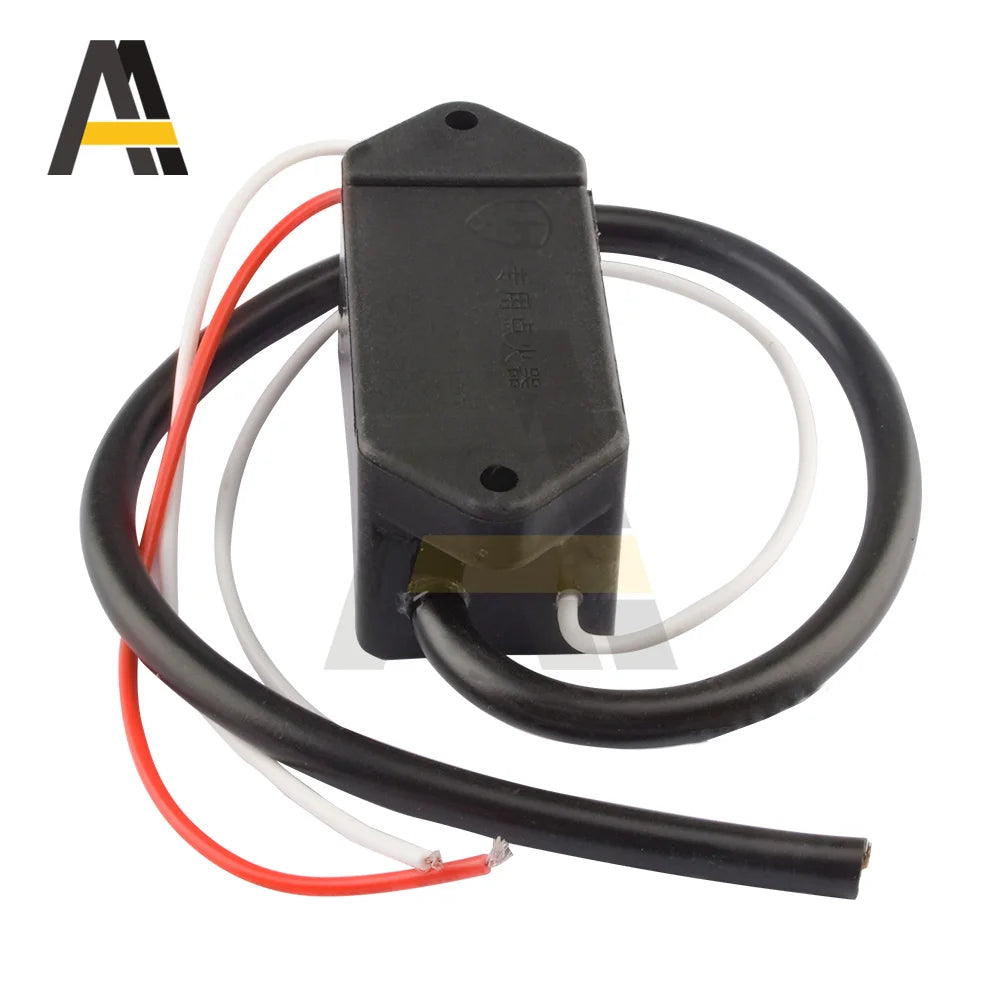

Name: DC igniter

Dimensions (mm): 77X31X30

Positioning hole height (mm): 10

Input voltage (VDC): 6-12V

Output voltage (KVDC): 20

Ignition distance (mm): 10

Working current (ma): 1000

Input wire diameter (mm): 2±0.03

Input line length (mm): 200

Module input red positive white negative

Output wire length (mm): 270 (ground wire) 380 (fire wire)

Output wire diameter (mm): 6.8±0.03 (live wire) 2.2±0.03 (ground wire)

Uses: Forestry and agriculture: ignition of fog machine, fog machine, electronic salute ignition, natural gas, gas stove, automatic electronic gas stove ignition

Package list:

1*High Voltage Generator

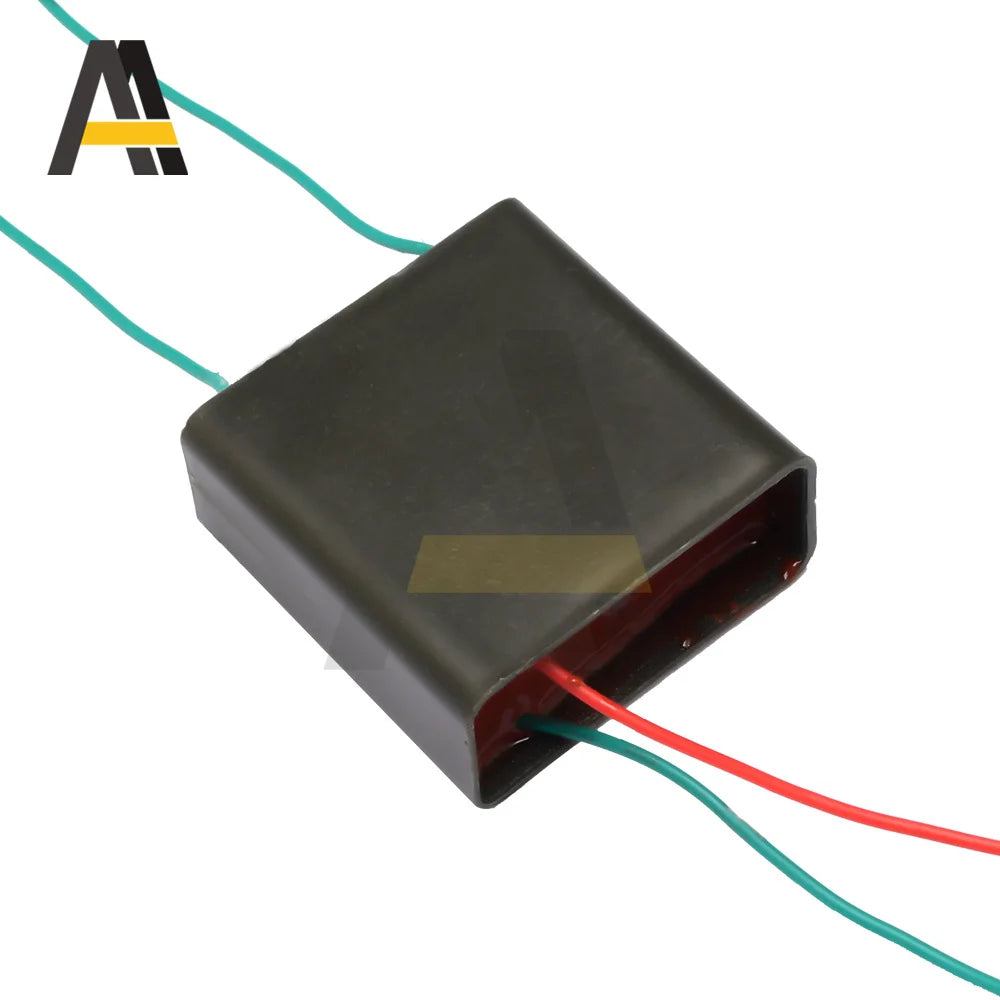

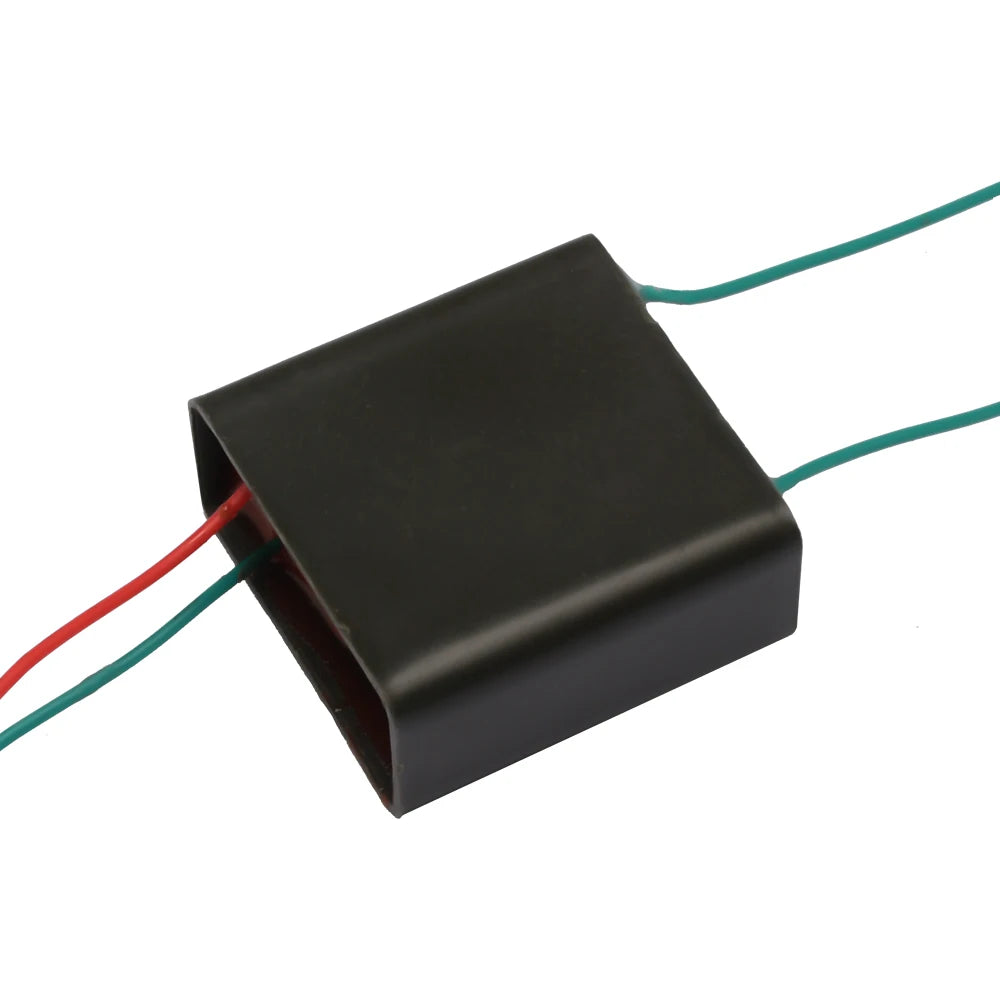

50KV DC3.6-4.8V

Features:

1. Small size.

2. Simple to use.

3. Wide range of applications.

4. Used for high-voltage testing, teaching, product development, etc.

Specification:

Arc distance: 5-15MM

Input voltage: DC3.6-4.8V

Size: 40mmX40mmX18mm

Output voltage: DC50KV (arc within 2CM)

Suitable for high-voltage testing, teaching, product development, etc.

Notice:

1. The module input is red, positive, green, and negative, and the color of the two output lines is the same.

2. The high-voltage module should be avoided when it is powered on at high voltage and no-load. Before power-on, the appropriate distance from the high-voltage line end must be adjusted. The arcing distance of the high-voltage line is proportional to the voltage and capacity of the battery used. The arc is drawn from short to long. It is strictly forbidden to exceed the longest Arc distance.

Package list:

1*High Voltage Generator

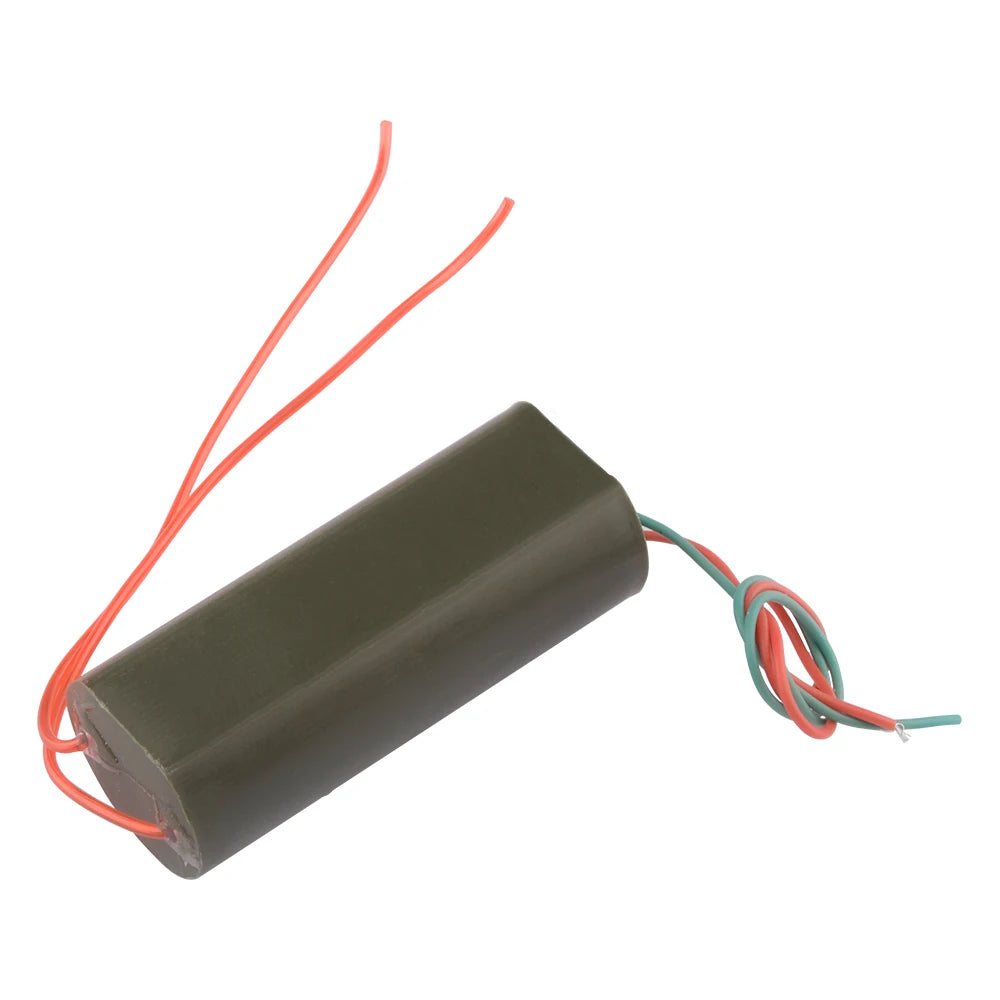

800KV    DC6-12V

Features:

1. Output high voltage pulse.

2. Wide application, small size and high efficiency.

Explanation:

This module is a high-voltage module/high-voltage generator made by a high-voltage package/transformer through a circuit composed of components. It can be used as a high-voltage source for students' popular science experiments/electronic instruments/negative ion generator/science mini-production. The module is made using the principle of Tesla coil. It can output high voltage pulse, small size, high efficiency and violent discharge intensity.

Specification:

Type: High Voltage Generator

Output DC800KV

output about 10 cm

Voltage: Input DC6-12V

Structure: shell integrated

Cut surface diameter 24mm

Current: input 4A, output 0.5A

Line length: input about 10 cm

Size: length 88mm diameter 26mm

Two-pole discharge distance: about 0.5-1.5 cm (more easily damaged)

Use:

Commonly used in high-voltage production, electronic DIY, product development, high-voltage electronic anti-theft, etc.

Instructions:

The two poles of the high-voltage output end (single-color thick line) are fixed within the specified discharge distance, and the red line of the low-voltage input end (two-color thin line) is connected to the battery.

Input requirements: This product does not need auxiliary circuits, and can be used directly when connected to a battery. The input terminal is connected to a single 3.7V lithium battery (such as 18650 battery) or a nickel-cadmium/nickel-metal hydride battery pack, 4V or 6V battery, etc. (6V battery can reach the maximum best effect)

Notice:

1. The high-voltage module should be avoided when it is powered on when the high-voltage is no-load. Before power-on, the appropriate distance from the high-voltage line end must be adjusted. The arcing distance of the high-voltage line is proportional to the voltage and capacity of the battery used.

2. When testing the arc distance, the experiment should be from short to long. It is strictly forbidden to exceed the longest arcing distance when the power is turned on. Because the high-voltage energy cannot be released, the module is easily damaged.

3. The power of the module is large, and it is not suitable for heat dissipation inside, so it cannot work for a long time.

4. The way to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is drawn. If it is around 6V, it can output the maximum power.

5. Two small-capacity lithium batteries are connected in series to 7.2V, and the measured voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use a lithium battery above 2000MA, and it is best to use a battery above 4000MA if possible.

Package list:

1*High voltage generator high voltage module

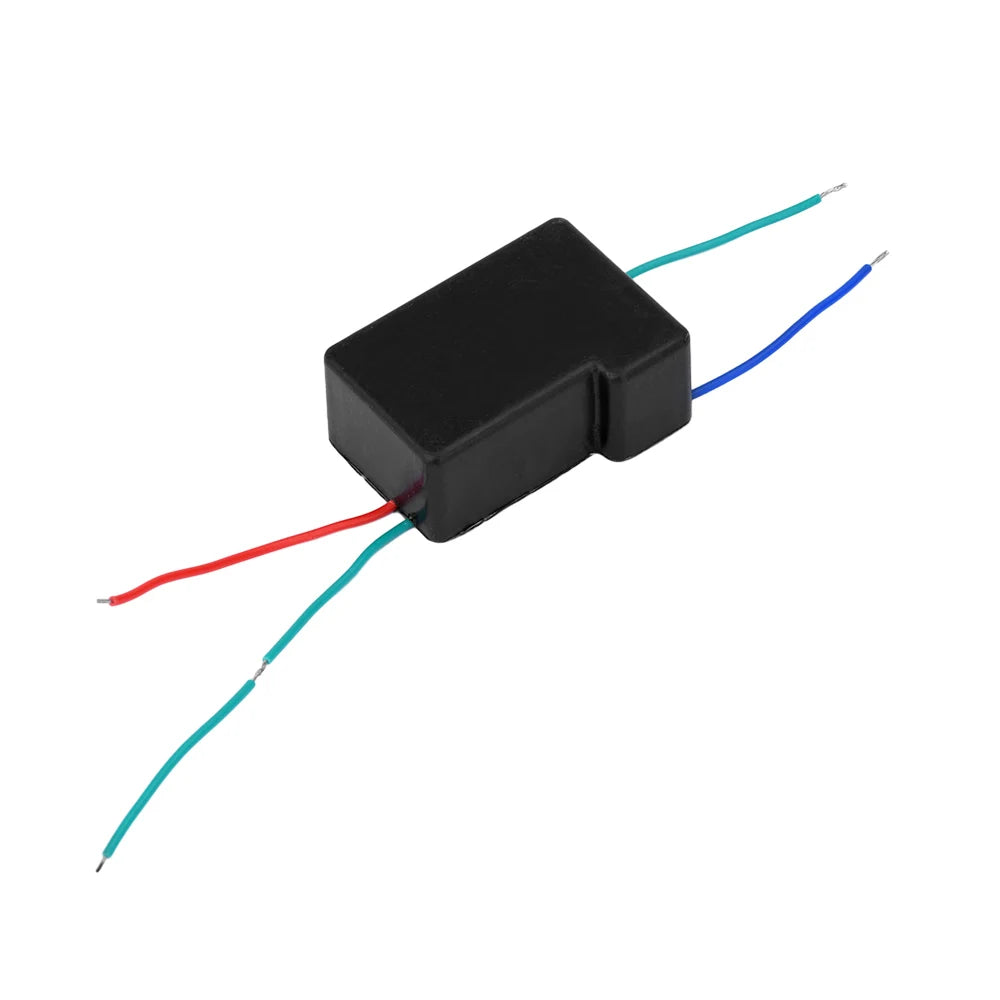

40-50KV DC 3.6V/4.8V

Specification:

Type: DC Pulse High Voltage Package

Size: length 50mm*20mm*18mm

Input voltage: DC 3.6V, 4.8V

Output voltage: 40-50KV

Working current: 1800mA

Ignition distance: 2-10mm

Inlet Diameter & Length 1.2±0.03 & 130mm

Output live wire diameter & wire length 2.2±0.03 & 280mm

Output ground wire diameter & wire length 2.2±0.03 & 280mm

Uses: security equipment accessories, kitchen stove ignition, electrostatic adsorption experiments

Package list:

1*High Voltage Generator

50KV DC3V-4.8V

Features:

1. The high voltage module is made of Tesla coil principle.

2. Pulse high and low pressure integrated, more convenient to use.

3. Output high voltage pulse, small size, high efficiency, fierce discharge intensity.

4. A wide range of applications, this module is a high voltage module/high voltage generator made of high voltage pack/transformer through component components of the circuit, which can be used as a high voltage source for students' popular science experiments/electronic instruments/negative ion generators/scientific small production.

Specifications:

Input voltage: 3V-4.8V (3.7V lithium battery)

Input current: 1-3A

High voltage type: pulse DC type

Output voltage: about 50KV (high voltage safety)

Output current: ≤0.5A

High voltage electrode discharge distance: 0.5cm-1.5cm (strictly prohibited)

Power discharge time: within 10 seconds (not long working time)

The input voltage will affect the output high voltage and arc distance

How to use:

The module is divided into input end and output end, red and green lines are input end, red positive and green negative; Two thick blue and green high voltage lines are the output end, fixed the output end of the appropriate arc distance, the input end of the battery can produce high voltage or high temperature arc.

About the input power: 3.7V lithium battery input (such as 18650 battery) nickel-cadmium/nickel-metal hydride battery pack, 4V lead-acid battery, etc. The input voltage and current affect the output high voltage and arc distance.

Attention:

1. The module should avoid power-on when the high voltage is no-load, and the distance between the high voltage discharge end must be adjusted before power-on. The arc distance between the output end is proportional to the battery voltage and capacity used.

2. The arc distance should be tested from short to long, and it is strictly prohibited to exceed the longest arc distance of the module, because the high voltage energy can not be released, it is easy to damage the module.

3. The power of the module is large, and the internal heat dissipation is not suitable, so it can not work for a long time.

Parcel list:

High voltage generator *1
