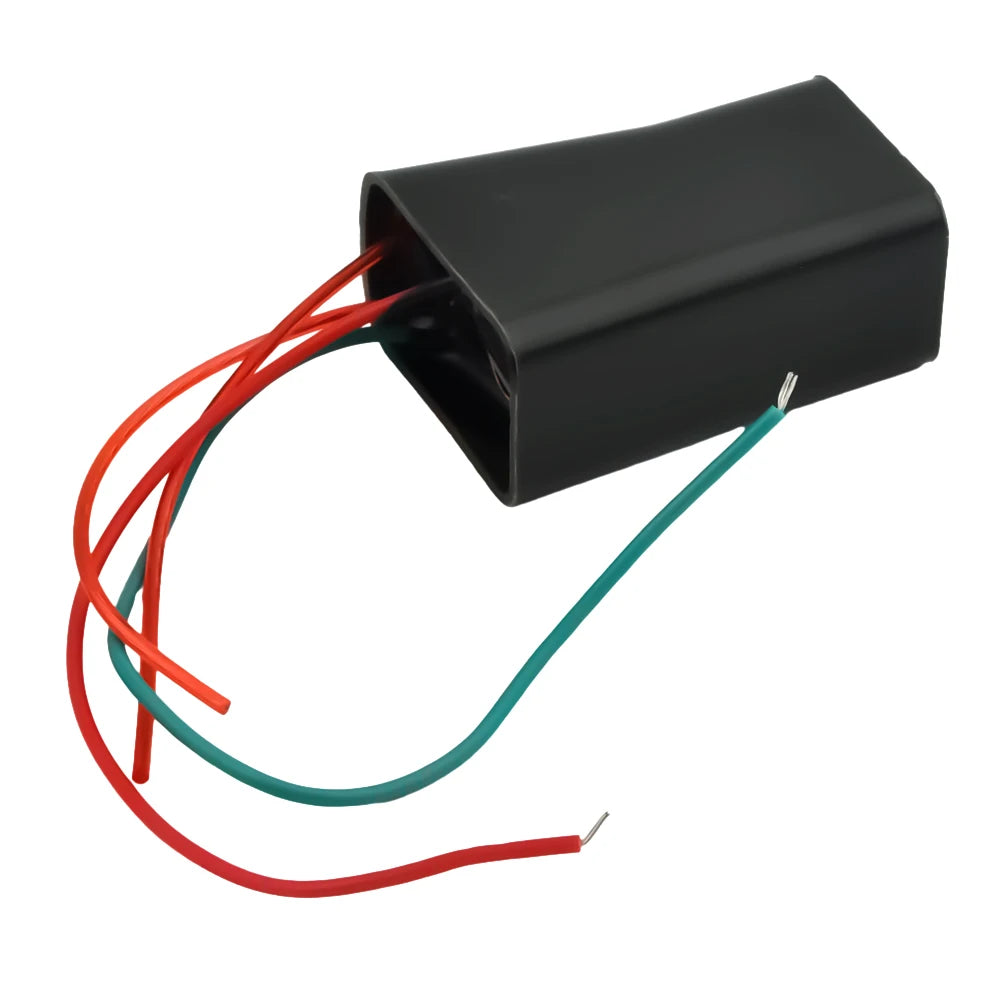

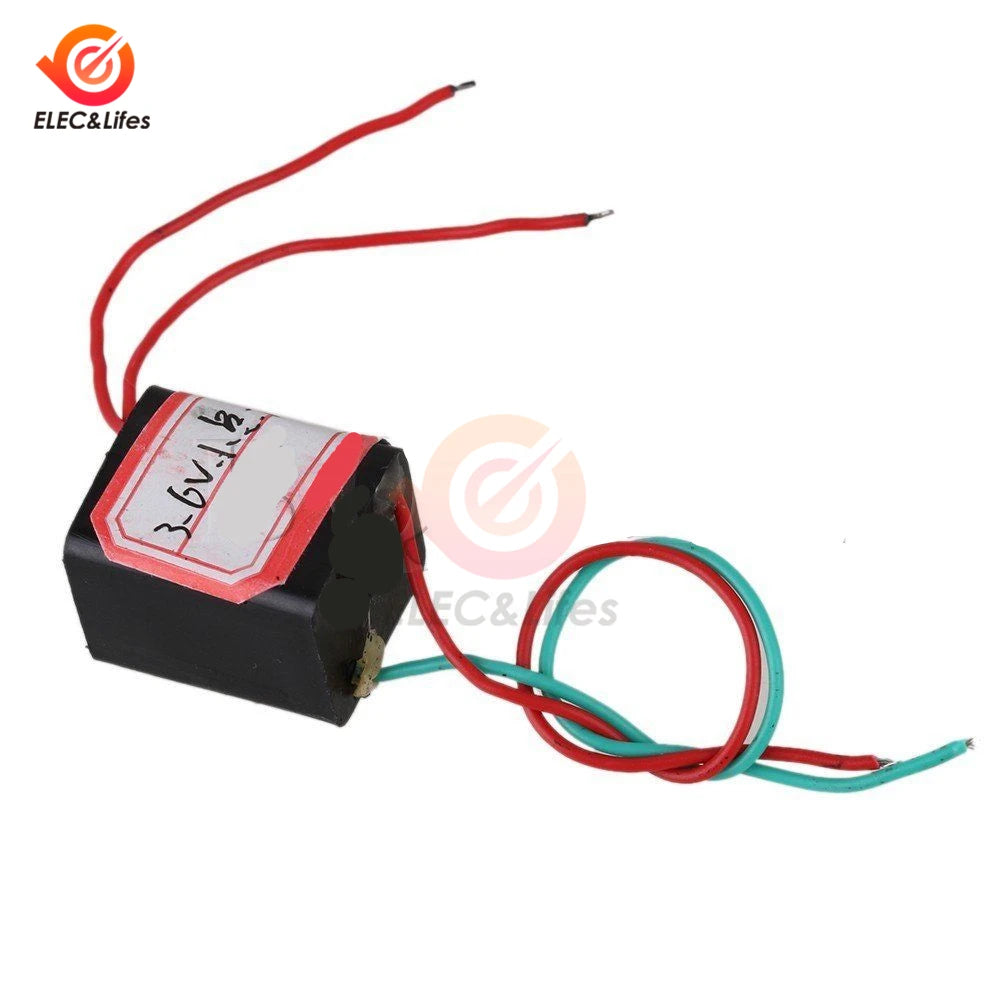

20KV:

Features:
Double high-voltage cables can be ignited by cigarette paper, and a high-voltage line is available at Metallkoerper to support current and no sound.
The module can be used as high school scientific experiment equipment, electronic equipment, negative ion generator, used for scientific hours using high voltage source.
About performance:
Single 18650 or idle mobile phone battery (remove the protection board, the position above 2000mAh, planned capacity).

note:
1. The high-voltage module should avoid no-load high-voltage current. The power must be set at a suitable distance from the high-voltage output line Batteriekapazitaet proportional distance and use high-voltage arc (unprovided voltage as high as possible enough to have power).
2. Experimental test from short to long arc distance. Without the maximum arc distance used by the step power, the energy cannot be released, and the module can be easily damaged due to high voltage.
3. Due to power, internal heat is not easy, and each working time should be set within 5 seconds.

specification:
Material: metal, plastic
Color: black
Dimensions: 19 × 20 × 18 mm (length x width x height)
Weight: 19 grams

Input voltage: DC3.6V-6V
Input current: 1.5A
Output voltage: (Please pay attention to safety when using) DC20KV
Output current: 0.05A
Input line length: about 1.1 mm (red is positive)
Ausgangsleitungslaenge: about 110 mm
High voltage bipolar discharge distance: 5 mm
Elegant Art: Pulse Current
Structure: high integration, low voltage

Package Included:
1 × 20kV boost power supply module

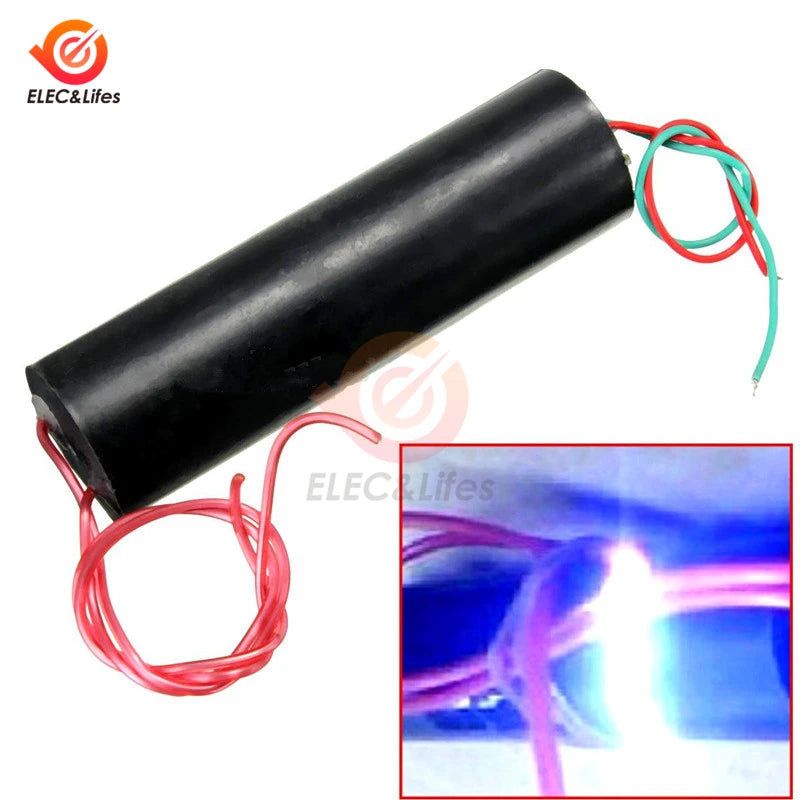

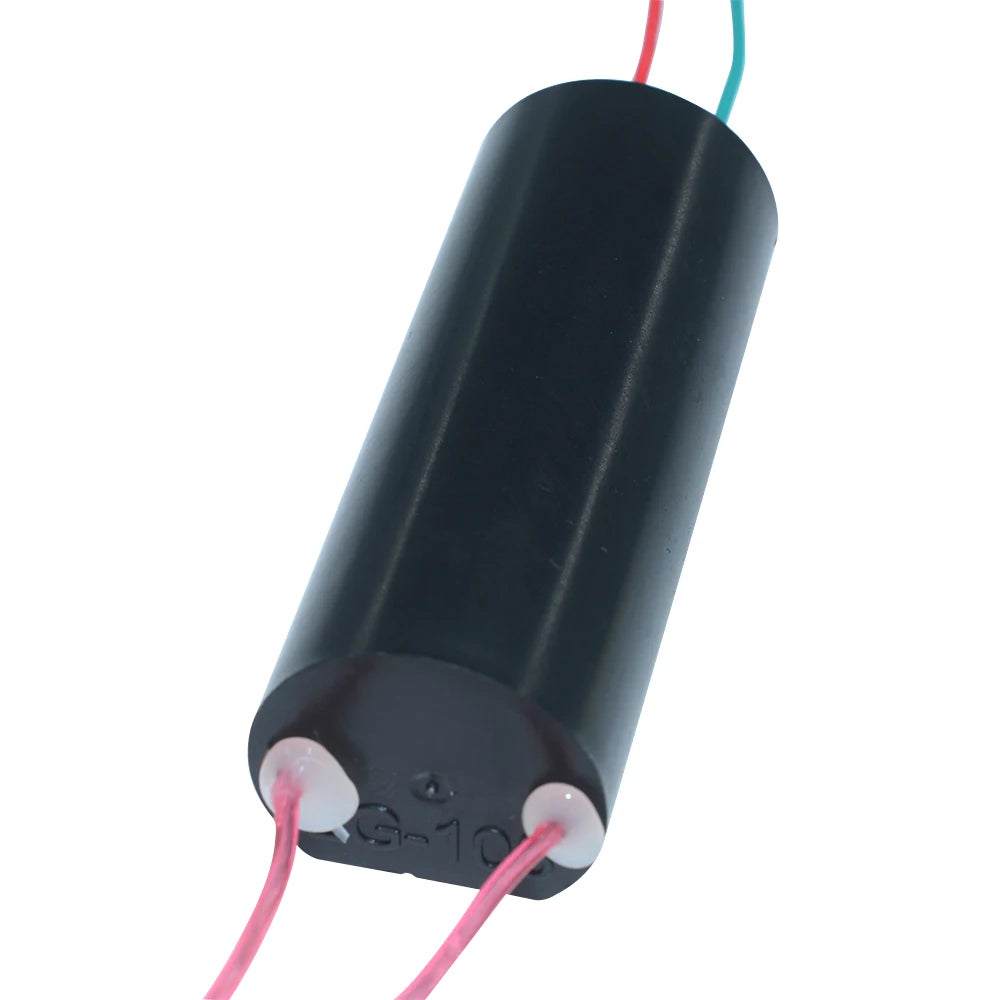

50KV:

product description:
1. Model: MC-105
2. Length: 64 mm
3. Diameter: 24 mm
Plane diameter: 21mm
5. Input voltage: DC 3.7-6V
Input current: 2A-3A
Input wire length: 10cm
8. High voltage form: pulse DC type
9. Output voltage: 50kV
Output current: 0.05A
11. Length of output line: 8cm
12. High voltage polarization discharge distance: 1-2cm
13. Usage: red and green lines are input ports, red line is positive, green line is negative, the other two high-voltage lines are output ports; fixed high-voltage line ports are at an appropriate distance; input port and battery can be connected to achieve high voltage arc
14. Input power: You can use a single 3.7V lithium battery or 2S in parallel, such as 18650 battery, etc.

Package Included:
1 x 50kV high voltage pulse generator super arc pulse ignition coil module

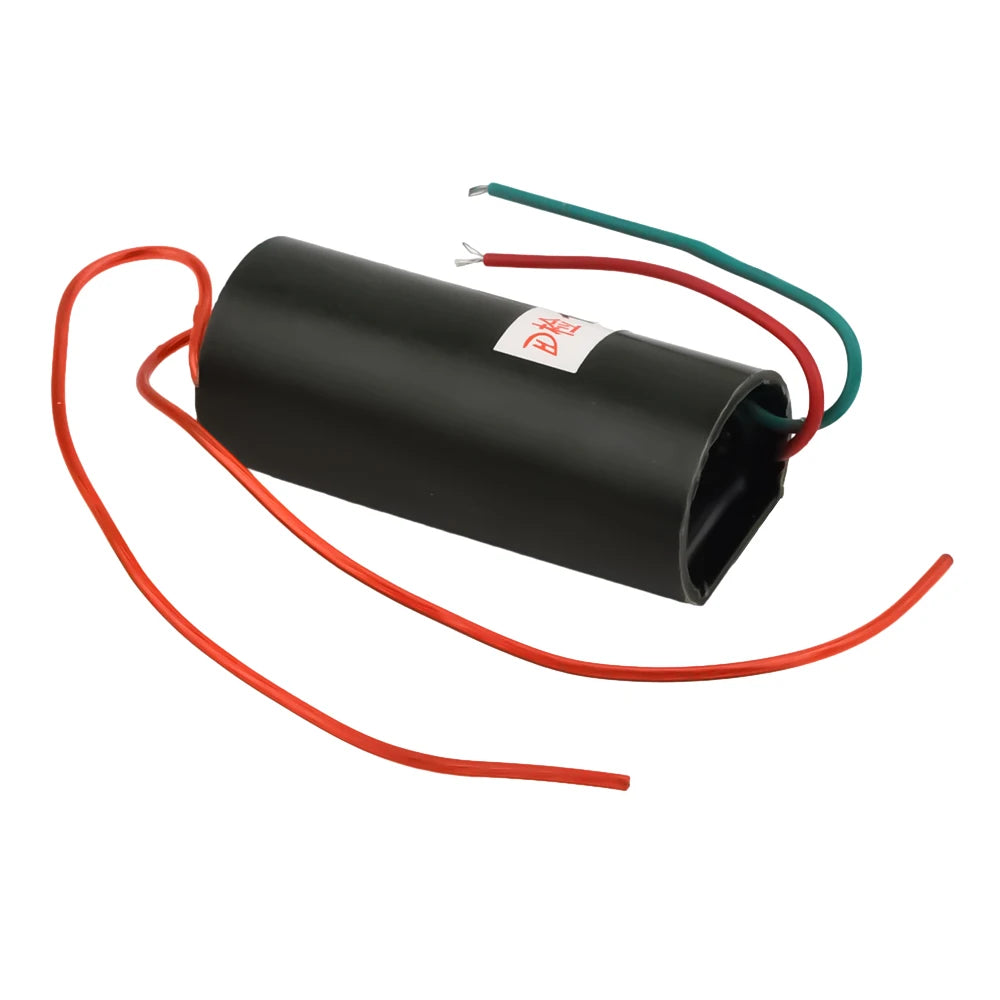

400KV

description:
Input voltage: DC 3 V to 6 V
Input current: 2 A-5 A
High voltage type: type of pulse current
Output voltage: 400,000 V (please pay attention to safety)
The distance between high voltage discharge is 10mm-20mm
Output high voltage wire length: 100mm
Input power cord length: 100 mm (red line is positive)
wiring:
Red and green power supply connected to the red wire: "+" green wire "-"
Output: the other side, the same color line

caution:
High-voltage modules should avoid the use of high-voltage no-load power. (The power supply must be adjusted to the appropriate distance of the high-voltage output line, the battery capacity is proportional to the distance and the use of high-voltage arc (without applying voltage as high as possible, you must provide sufficient current). Experiment from short to long arc distance test, do not exceed the maximum Arc distance power, energy, can not be released due to high voltage, it is easy to damage the module).

Work: intermittent, continuous work is not allowed to exceed 1 minute and the output side is not allowed to short circuit. Incorrect voltage and long working time can easily damage the module

Package Included:
1 DC 3V-6V to 400 kV boost 400,000V boost power module high voltage generator

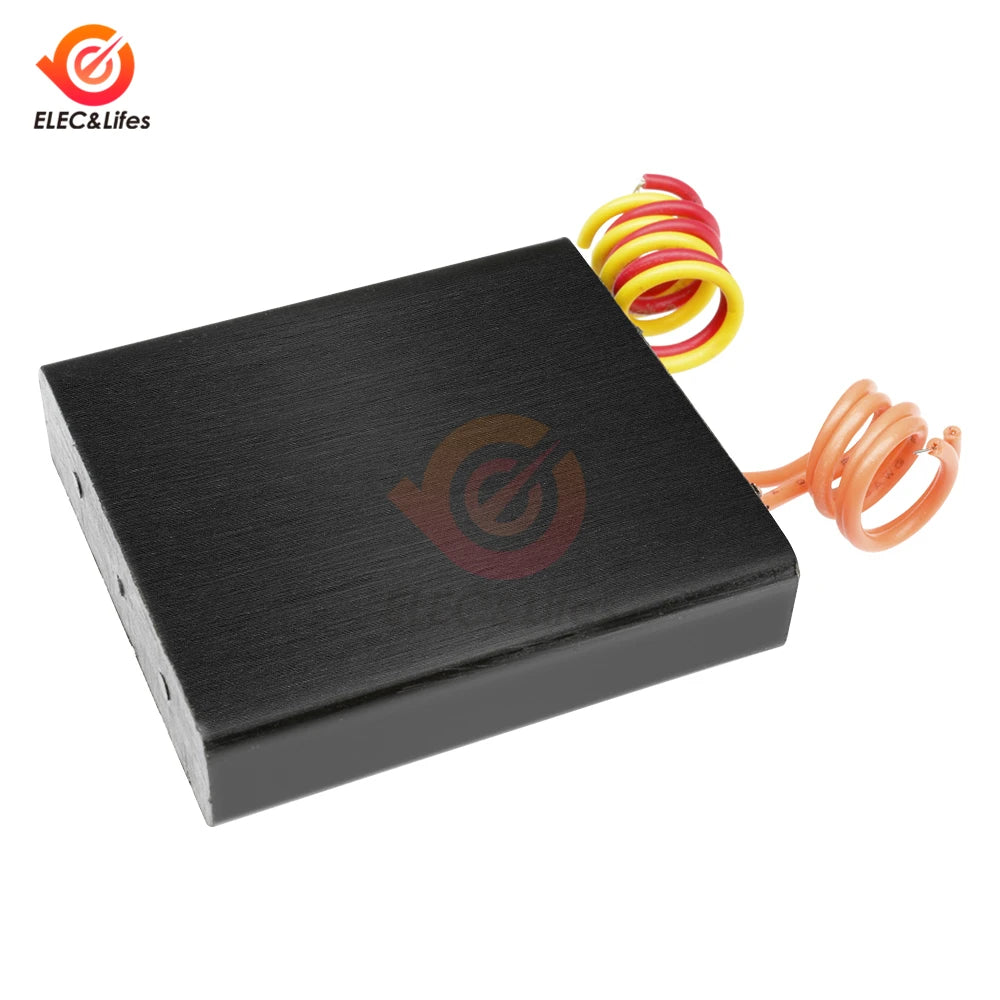

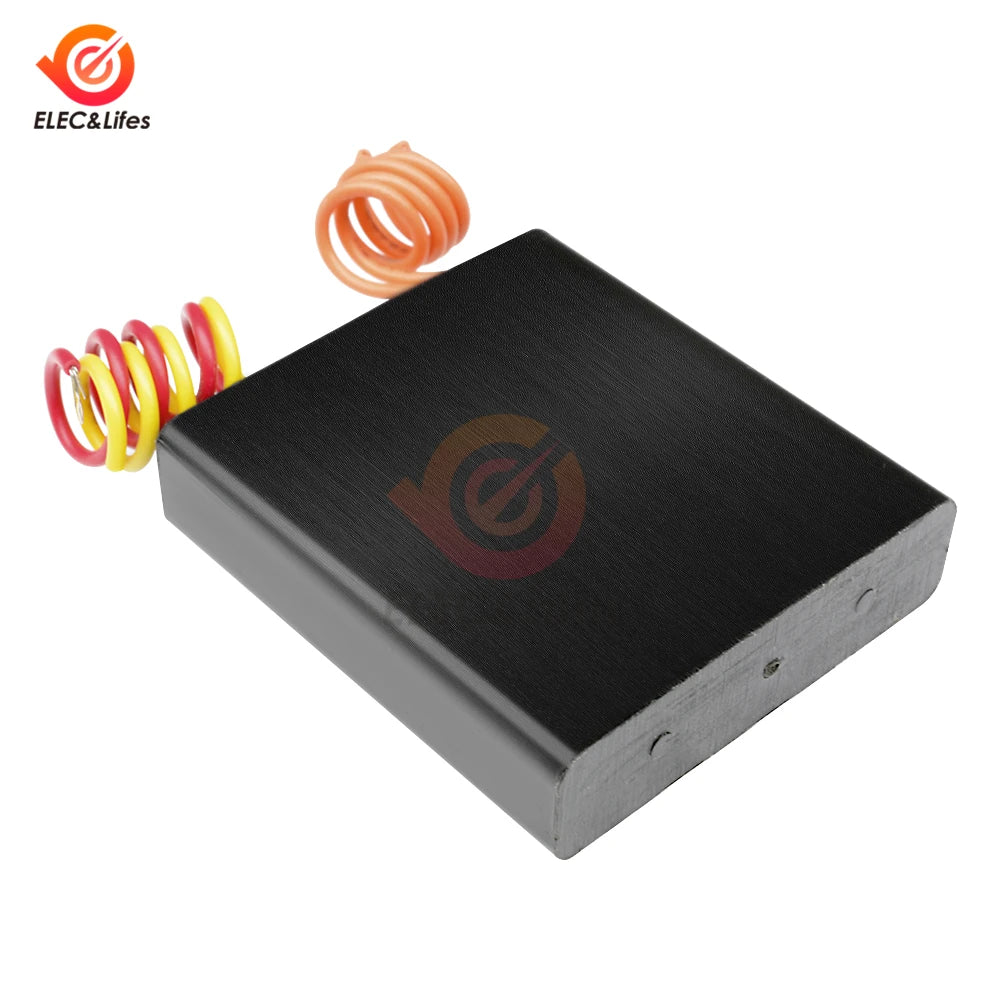

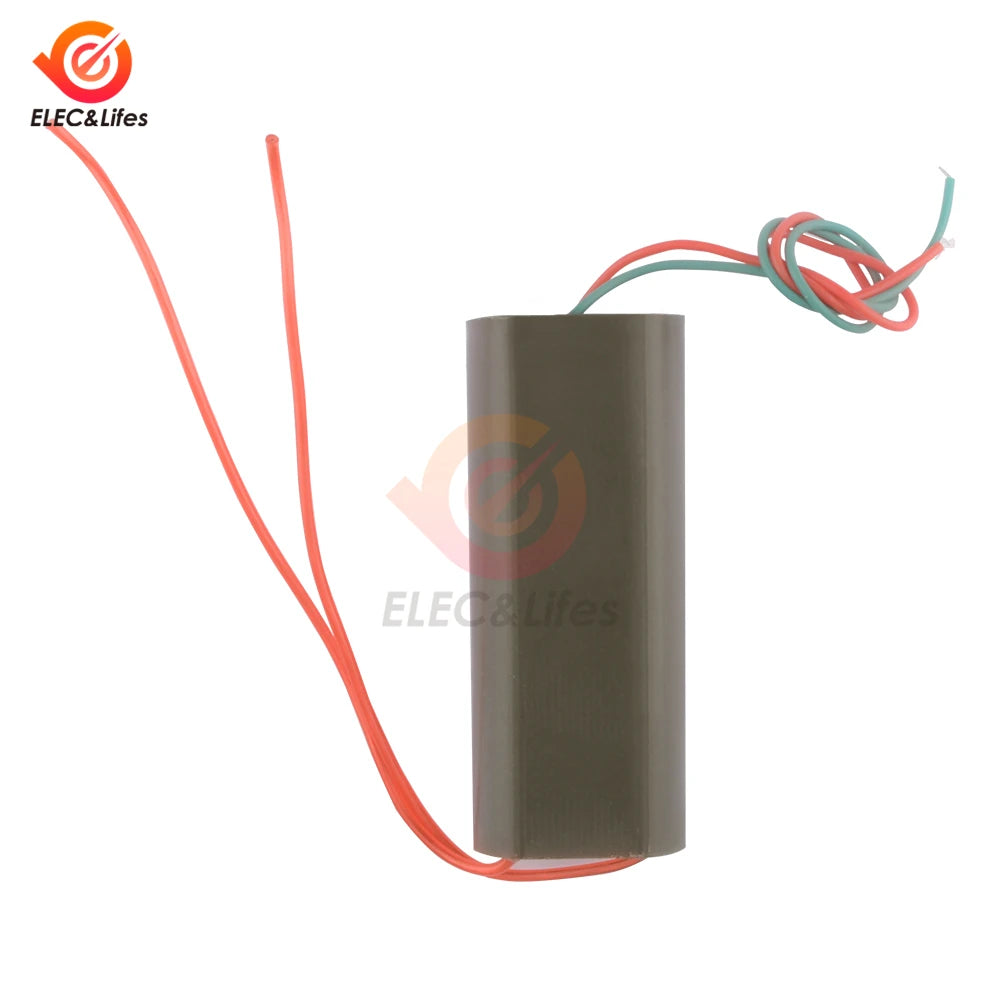

400KV Square:

note:
1. Avoid power on when there is no load. Before starting the machine, the appropriate distance of the high-voltage terminal must be adjusted. The longer the arc distance, the higher the input voltage and the greater the battery capacity.
2. It is forbidden to exceed the maximum arc distance. Otherwise, because the pressure is too high, the module is easily damaged and cannot release energy.
3. Can't work long hours.
4. Please connect the metal after the test to release the remaining energy!
5. High voltage arc generator, high temperature arc generator, can not ignite paper or cigarettes

description:
1. Module model: MC-CBPG
2. Volume: 40 * 36.5 * 8mm
3. Input voltage: 3.7V-6V
4. Input current: 0.5A-1A
5. Input line length: about 4 cm
6. High voltage type: pulse DC type
7. Output voltage: about 400KV (please pay attention to safety when using)
8. Discharge distance of high voltage pole: 1.5cm-2cm
9. About power supply: 6V and above 2000mAh are recommended for best results

feature:
1. High voltage pulse current output
2. Small size
3. High efficiency
4. Simple peripheral circuit (only need button and battery)

Machine application:
1. Scientific experiment
2. Electronic Instruments
3. Ionizer
4. DIY kit

1000KV:

Product Specifications:
Module type: MC-901
Input voltage: 3.7V-7.4V
Input current: 0.5A-1A
Input wire length: 9 cm
High voltage: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately 16 cm
High voltage bipolar discharge distance 1.5cm-2cm
Size: 88x26mm (LXD)

Precautions for using the module:
1. The high-voltage module should avoid using high-voltage no-load, the power supply must
Adjust the high-voltage line of the appropriate distance before the end, high-voltage wire drawing
The distance is proportional to the voltage and capacity of the battery used.
2. From short to long experiments, test the arc distance when the power supply is prohibited
Exceeding the longest arc distance, due to the high voltage energy cannot be released,
It is easy to damage the module.
3. When the module is powered, the internal heat is not hot, so it does not work for a long time.

Package Included:
1XHigh voltage inverter

500KV:

DC12V DC high voltage pulse generator module ignition coil capacitance arc distance 50mm
12V input, good power, quality, arcing distance, sound shocking, simple operation

Specifications:
Peripheral circuit is simple (just plug in switches, batteries can be) the discharge intensity violent.
Module Model: MCY-12-1
Physical volume: Length 70X 32mm diameter
Input voltage: 6V-12V
Input Current: 0.5A-1A
Input line length: 23 cm
High voltage type: DC type pulse
Output voltage: about 500KV (please pay attention to safety when used)
Output Current: 0.5A-1A
Output line length: about 92 cm
High voltage bipolar discharge distance: 2 cm -5 cm

Features:
This module is a science of small production with high voltage inverter transformer / booster finished module
After the input terminal DC6V-12V voltage can get tens of thousands of volts of direct current high voltage at the output,It can be used for high school science experiment, electronic equipment, negative ion generator, high voltage source when using scientific small production,Module uses the Tesla coil principle is made,
the output high voltage pulse current, small size, high efficiency

Usage:
1. To avoid the use of electricity at high voltage load, must adjust the proper distance
between the front end of the high-voltage power-
2. To test the arc distance from short to long experiment, when power is strictly prohibited exceed
the maximum arcing distance, energy can not be released due to high pressure, easy to damage the module.
3. Power module, the internal should not heat, so we can not work long hours.
4. Determine whether the battery capacity can drive maximum power output of the battery
voltage measurement approach is arcing time. If 6V or so you can output the maximum power.
5. Two small-capacity lithium series is 7.2V, measured in arc-state voltage has dropped to about 4V,
the capacity of the smaller voltage pull lower. It is proposed to use lithium 2000MA above,
the best conditions with more battery 4000MA.

Package includes:
1x DC12V pulse high-voltage module
